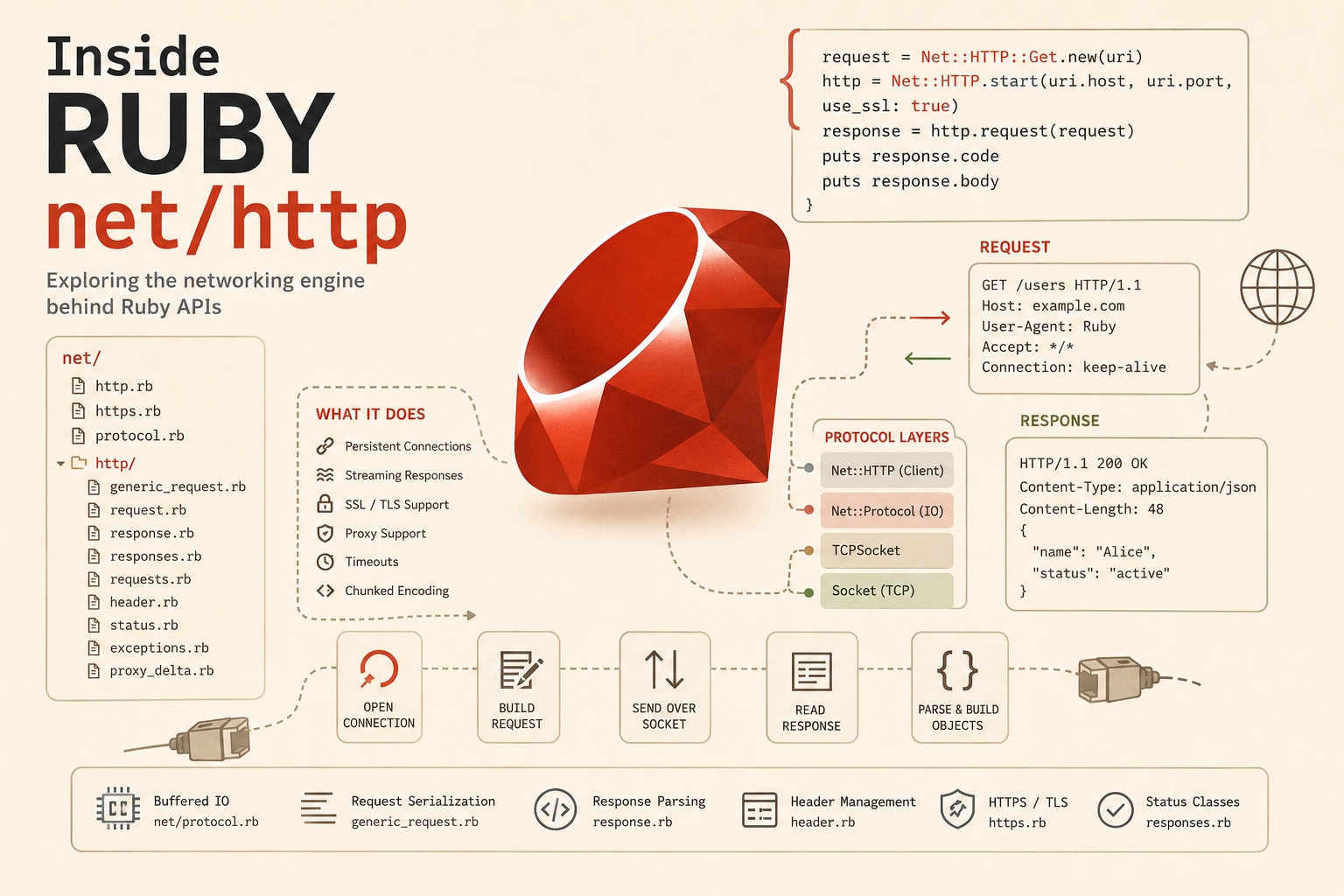

Inside Ruby’s net/http: Exploring the Networking Engine Behind Ruby APIs

May 19, 2026

Most Ruby developers use HTTP every day.

Whether through:

• Rails API integrations
• webhooks
• OAuth providers
• payment gateways
• microservices
• REST clients

…underneath the stack, many requests still pass through Ruby’s classic net/http.

But few developers ever explore how it actually works internally.

Inside Ruby’s standard library lives a surprisingly sophisticated networking engine featuring:

• socket abstractions
• request serialization
• response parsing
• persistent connections
• SSL/TLS support
• streaming IO
• protocol modeling

In this article we’ll explore the architecture behind Ruby’s HTTP stack by reading the internals of:

• net/http.rb
• net/protocol.rb
• generic_request.rb
• response.rb
• header.rb
• https.rb

Built for Ruby on Rails

Build Maps Without
Google APIs

Generate beautiful production-ready maps directly from your Rails backend. Fast rendering, zero external dependencies, full control.

View Live Demo → Read Docs

✓ No API fees ✓ Self-hosted ✓ Rails Native ✓ Fast Rendering

Why developers switch

Replace expensive map stacks.

Stop relying on third-party map billing and bloated JS libraries. Render static or dynamic maps directly in Ruby.

Try It Now

The Structure of Ruby’s HTTP Stack

The archive contains the core implementation of Ruby’s networking libraries:

net/
├── http.rb
├── https.rb
├── protocol.rb
└── http/
    ├── generic_request.rb
    ├── request.rb
    ├── response.rb
    ├── responses.rb
    ├── requests.rb
    ├── header.rb
    ├── status.rb
    └── exceptions.rb

This is not just helper code.

This is Ruby’s actual HTTP client implementation.

The Request Lifecycle

A simple request:

require 'net/http'
uri = URI('https://example.com')
response = Net::HTTP.get_response(uri)
puts response.code
puts response.body

Looks trivial from the outside.

Internally Ruby performs:

URI
 ↓
TCP Socket
 ↓
SSL Wrapping
 ↓
HTTP Serialization
 ↓
Socket Write
 ↓
Socket Read
 ↓
Header Parsing
 ↓
Response Object Creation
 ↓
Body Streaming

The stdlib implements the entire pipeline manually.

net/protocol.rb — The Hidden Core

One of the most important files is:

net/protocol.rb

This file abstracts:

• buffered IO
• socket communication
• reading/writing
• timeouts
• protocol errors

It acts as the transport foundation for higher-level protocols.

Buffered Reading

Ruby wraps sockets using buffered IO classes.

Simplified concept:

class BufferedIO
  def readuntil(terminator)
    # read socket incrementally
  end
end

Why?

Because network communication is:

• partial
• fragmented
• asynchronous

TCP packets do not guarantee complete reads.

Ruby must reconstruct the HTTP protocol stream manually.

Timeout Handling

net/protocol.rb also manages:

open_timeout
read_timeout
write_timeout

Example:

http = Net::HTTP.new('example.com')
http.open_timeout = 5
http.read_timeout = 10

Internally this protects the process from:

• hanging sockets
• dead connections
• stalled servers

This becomes critical in production systems.

How Ruby Builds HTTP Requests

The file:

net/http/generic_request.rb

handles serialization of requests into raw HTTP.

Example: HTTP Request Serialization

Ruby transforms:

Net::HTTP::Get.new('/users')

into:

GET /users HTTP/1.1
Host: example.com
Connection: close
Accept: */*

Internally the library manually constructs the protocol text.

Core responsibilities include:

• headers
• body encoding
• chunked transfer encoding
• content-length calculation

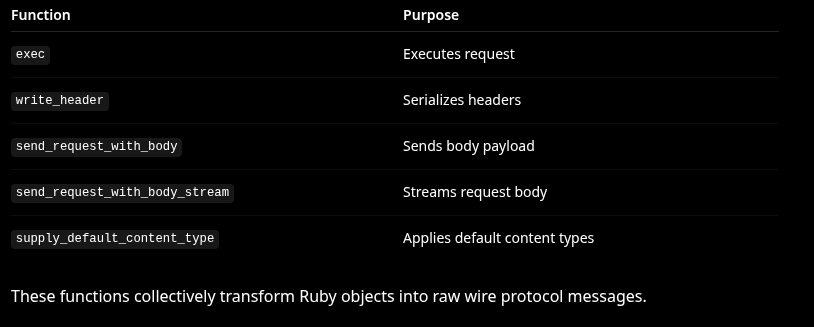

Important Request Functions

Some of the most relevant methods inside the request system:

HTTP Verbs as Classes

Ruby models HTTP verbs using subclasses.

Examples:

Net::HTTP::Get
Net::HTTP::Post
Net::HTTP::Put
Net::HTTP::Delete

Internally:

class Net::HTTP::Get < Net::HTTPRequest
end

This is classic Ruby stdlib OOP design.

Each verb contains protocol semantics.

Response Parsing

Responses are handled in:

net/http/response.rb

Ruby parses:

• status line
• headers
• body
• transfer encoding
• chunked streams

Example Response

Raw HTTP:

HTTP/1.1 200 OK
Content-Type: application/json
Content-Length: 15
{"status":"ok"}

Ruby converts this into:

response.code
# => "200"
response.message
# => "OK"
response.body
# => "{\"status\":\"ok\"}"

HTTP Status Codes as Classes

One of the most elegant parts of the design lives in:

responses.rb

Ruby represents statuses as objects:

Net::HTTPOK
Net::HTTPNotFound
Net::HTTPForbidden
Net::HTTPMovedPermanently

This allows:

case response
when Net::HTTPSuccess
  puts "success"
when Net::HTTPRedirection
  puts "redirect"
when Net::HTTPClientError
  puts "client error"
end

This is a beautiful example of protocol modeling through inheritance.

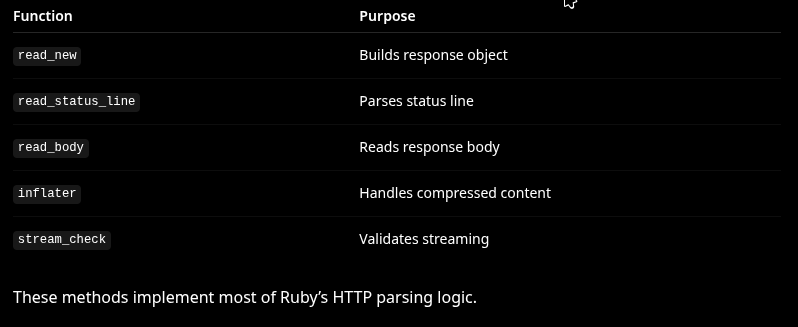

Important Response Functions

Key internal functions include:

Header Management

Headers are implemented in:

header.rb

Ruby treats headers as normalized collections.

Example:

response['content-type']

Internally:

• keys are normalized
• duplicate headers are merged
• casing is abstracted away

This simplifies protocol handling dramatically.

Persistent Connections

One of the most important optimizations:

Net::HTTP.start(host, port) do |http|
  # multiple requests
end

Ruby keeps the socket open.

Benefits:

• fewer TCP handshakes
• reduced latency
• improved performance

Internally:

• connection reuse
• keep-alive tracking
• socket lifecycle management
• EOF detection

are all implemented manually.

HTTPS Support

The file:

https.rb

bridges net/http with OpenSSL.

Example:

http.use_ssl = true

Internally Ruby:

• wraps the socket
• negotiates TLS
• validates certificates
• encrypts traffic

This tiny layer enables the entire HTTPS ecosystem.

Streaming Responses

Ruby can stream bodies incrementally:

http.request(request) do |response|
  response.read_body do |chunk|
    puts chunk
  end
end

Internally this avoids loading entire payloads into memory.

Critical for:

• large downloads
• streaming APIs
• file transfers
• memory efficiency

Chunked Transfer Encoding

Ruby also implements HTTP chunked encoding.

Example wire protocol:

4
Wiki
5
pedia
0

The parser reconstructs the stream incrementally.

This is one of the more complex parts of HTTP handling.

Architectural Design Philosophy

The codebase reflects classic Ruby stdlib design:

• inheritance-heavy
• protocol-oriented
• object-modeled networking
• manual IO handling
• explicit abstractions

Unlike modern gems that hide implementation details, the stdlib exposes the protocol itself clearly.

Reading this code teaches:

• networking
• socket programming
• protocol design
• streaming IO
• HTTP semantics

—not just Ruby.

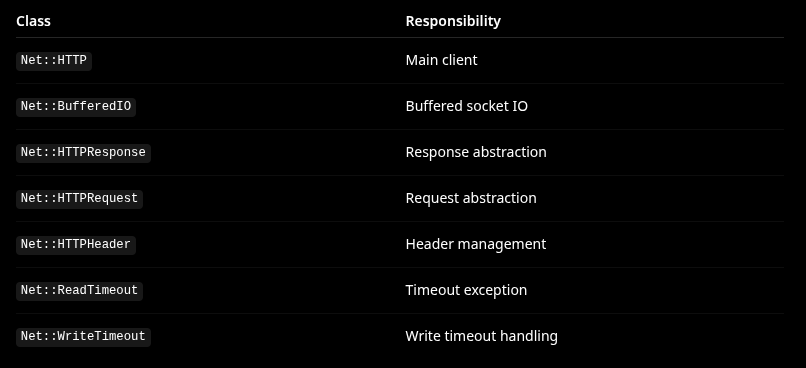

Some Particularly Interesting Internal Classes

What Makes This Codebase Valuable

Even today, modern libraries often build on top of these ideas.

Gems like:

• Faraday
• HTTParty
• HTTPX
• RestClient

still rely conceptually on:

• serialization
• transport abstraction
• response parsing
• persistent connections

The stdlib remains foundational knowledge.

Final Thoughts

Ruby’s net/http is far more than a convenience wrapper.

It is:

• a protocol engine
• a socket abstraction layer
• an HTTP parser
• a streaming framework
• an SSL client
• a transport architecture

implemented directly inside the standard library.

Reading this codebase reveals how much engineering exists beneath a simple:

Net::HTTP.get(uri)

And that’s exactly what makes exploring Ruby internals so rewarding.
