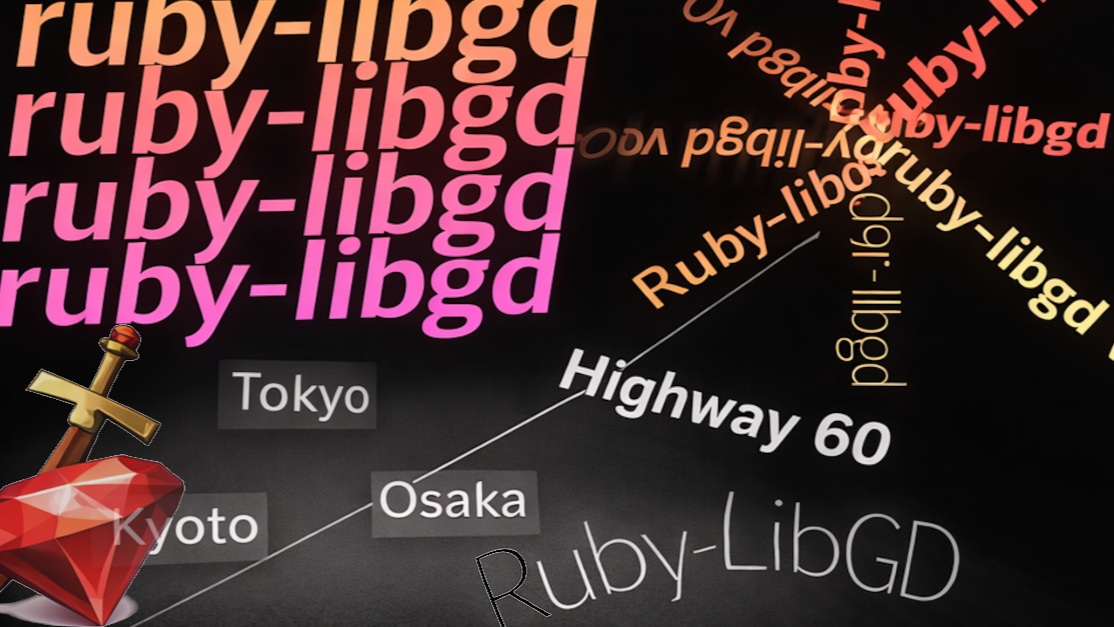

ruby-libgd v0.2.2 — Text & Layout Foundations for Ruby Graphics

January 14, 2026

The biggest limitation of most Ruby image libraries is not pixels — it’s text.

Fonts, labels, positioning, alignment, rotation, and layout are what separate a toy renderer from a real graphics engine. Until now, ruby-libgd only exposed a very minimal wrapper around FreeType. It worked, but it didn’t allow proper layout, labeling, or advanced typography.

With ruby-libgd v0.2.2, that changes.

This release introduces a new text & layout foundation that turns ruby-libgd into a serious graphics backend for posters, maps, dashboards, UI overlays, and generative art.

Why text was the missing piece

Before this release, you could draw text like this:

img.text("Tokyo", x: 100, y: 100, size: 32, font: "NotoSans.ttf", color: [255,255,255])

But you couldn’t:

• measure how wide the text was
• center it
• draw a background
• rotate it accurately
• align it to roads or labels
• render high-DPI text
• do multiline layout

That made GIS labels, posters, thumbnails, and UI rendering painful.

v0.2.2 fixes this at the engine level.

1) Measuring text with text_bbox

The most important new primitive is text measurement.

w, h = img.text_bbox(
  "Tokyo",
  font: "NotoSans-Bold.ttf",
  size: 32
)

This returns the real pixel size of the rendered text using the same FreeType engine that draws it.

That unlocks:

• centering
• background boxes
• alignment
• collision detection
• label placement
• UI layout
• GIS overlays

For example:

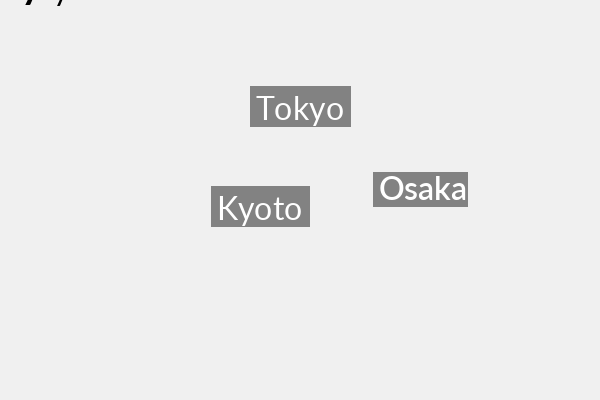

w, h = img.text_bbox("Osaka", font: font, size: 24)

img.filled_rectangle(
  x - w/2 - 6,
  y - h - 6,
  x + w/2 + 6,
  y + 6,
  [0,0,0,140]
)

img.text("Osaka", x: x - w/2, y: y, font: font, size: 24, color: [255,255,255])

This is exactly how Mapbox, QGIS, and game engines place labels.

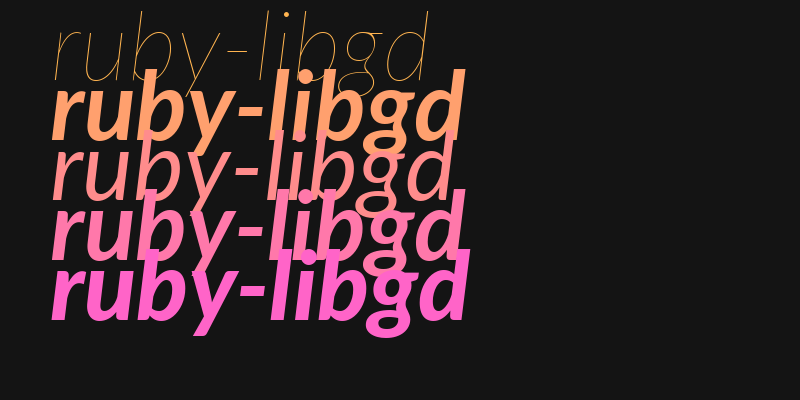

2) High-quality FreeType rendering with text_ft

The second pillar is FreeTypeEx rendering via text_ft.

img.text_ft(
  "Tokyo\nShinjuku",
  x: 100,
  y: 200,
  font: "NotoSans-Regular.ttf",
  size: 28,
  color: [255,255,255],
  dpi: 144,
  line_spacing: 1.4
)

This enables:

• multiline text
• DPI-aware rendering
• better hinting
• line spacing
• high-resolution export
• professional typography

This is the same FreeType engine used by desktop publishing and mapping software.

3) Rotation & map labels

Because FreeType is now fully exposed, text can be rotated and aligned to geometry.

angle = Math.atan2(y2 - y1, x2 - x1)

img.text_ft(
  "Highway 60",
  x: x,
  y: y,
  font: font,
  size: 24,
  color: [0,0,0],
  angle: angle
)

This makes ruby-libgd suitable for:

• road labels
• river names
• cartography
• infographics
• diagrams

4) Backward compatibility preserved

The original .text method remains unchanged.

That means:

• existing scripts keep working
• simple use stays simple
• advanced users get new power

ruby-libgd now has:

• text — simple
• text_bbox — measurement
• text_ft — professional FreeType rendering

This is exactly how serious graphics engines are structured.

5) Why this matters for Ruby

These primitives are the foundation for:

• ruby-libgd-gis
• map rendering
• posters
• social images
• dashboards
• thumbnails
• generative art
• PDF-like layouts
• UI overlays

With v0.2.2, Ruby finally has a layout-capable, FreeType-driven image engine that runs fast, natively, and without heavyweight dependencies.

Final words

ruby-libgd v0.2.2 is not just a feature release — it is a structural upgrade.

It turns ruby-libgd from “a way to draw pixels” into a real graphics engine capable of labels, typography, and layout — the foundation required for serious GIS, visualization, and design tools in Ruby.
